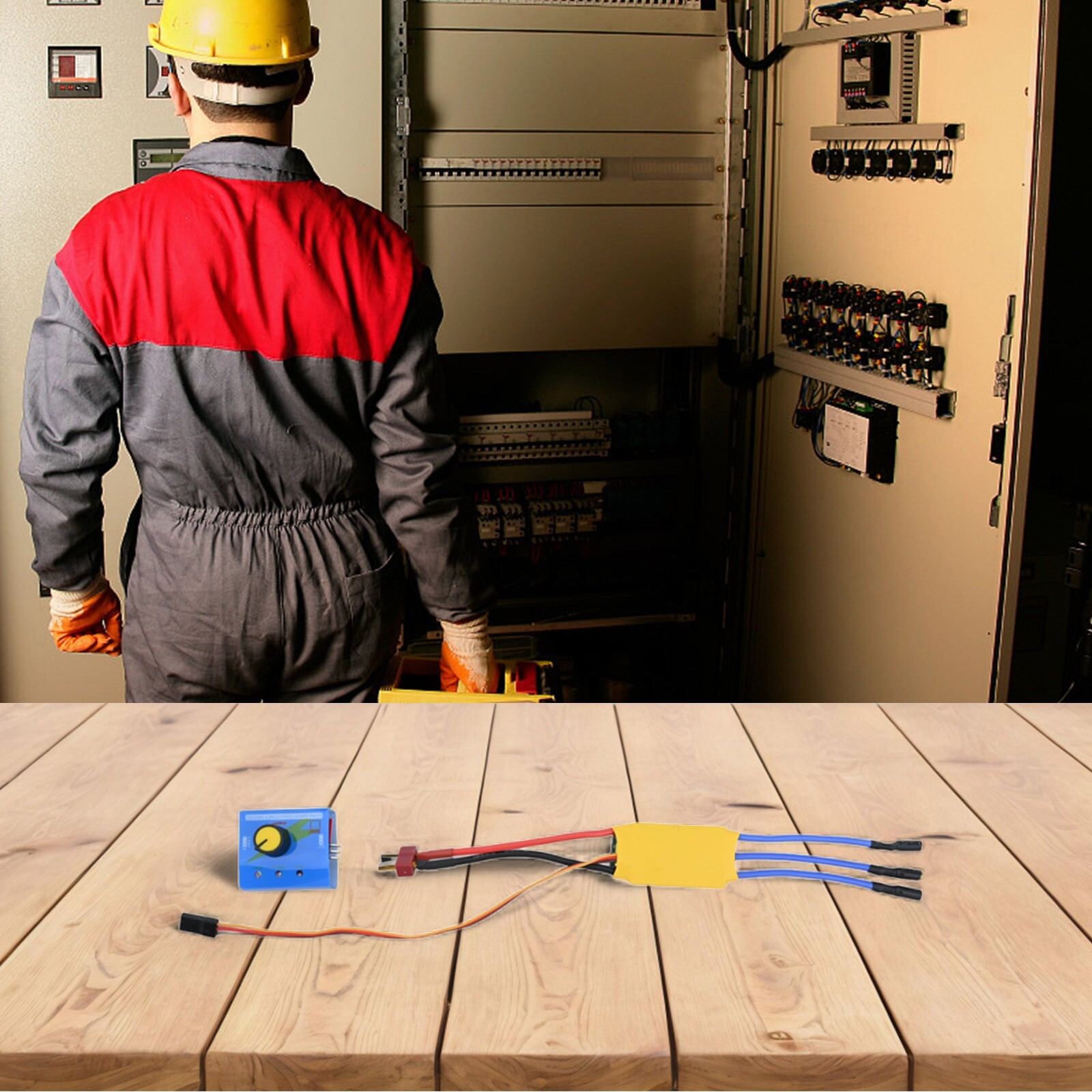

Controller 3 Phase Regulator 32X24X7mm 4V-16V Accessories Motor Governor
$ 11.05
Description
Controller 3 Phase Regulator 32X24X7mm 4V-16V Accessories Motor Governor DESCRIPTION Product Description: Brand new high quality Made of high-quality materials for durability Three-phase high-power brushless motor governor Motor governor DC 12V 30A for PWM brushless motor governor Drive with server test Voltage range: 4V-16V Continuous current 30A, for instant 35A, 40A for 10 seconds. Dimensions: 32 X 24 X 7 (mm) BEC output: Continuous 2A, ( for instant 3A) 2LIPO 4-5 for Mi cro 3LIPO 3-4 for Mi cro Protective function: Automatically select 2-3LIPO, protection voltage 6V/9V; Automatically select NIMH, the protection voltage of each segment is 0.8V; Safe start, if the accelerator position is not correct, it is forbidden to start; Temperature protection, 110 degrees temperature shutdown; Runaway protection, stop after 1 second without signal. Performance description: The upper limit of rotation speed is 300,000 rpm for 2 poles, 50,000 rpm for 12 poles, and 42,000 rpm for 14 poles. 8KHz for PWM control, using speed regulation curve. Autothrottle adaptation for more remote control devices. The MCU adopts BEC, the power supply is separated, and the work is more stable. Package Included: 1 * Motor Speed Controller 1 * Server Test Note: 1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. 2.Please allow slight manual measurement deviation for the data. POLICES Shipping Payment WARRANTY We only ship to confirmed ebay Order addresses. Please comfirm that your Order address is in line with your shipping address. Please kindly note that the c ombined shipping is not provided because the shipping fee is calculated by weight. Also, the each additional item means exactly the the same color and size. It takes about 7 -15 working days to US; about 10-30 working days to other countries. Transit time may be a little delayed because of the bad weather and customs inspection . If you do not receive your item within 30 working days since payment finished, please contact us immediately for further assistance. Payment must be completed within 5 days. If you have any problems about payment, please contact us via ebay message. We strive for 100% customer satisfaction! Positive Feedback is very important to us. If you have any questions, p lease feel free to contact us via "Ask seller a question" . We will reply your email within 24 working hours.
