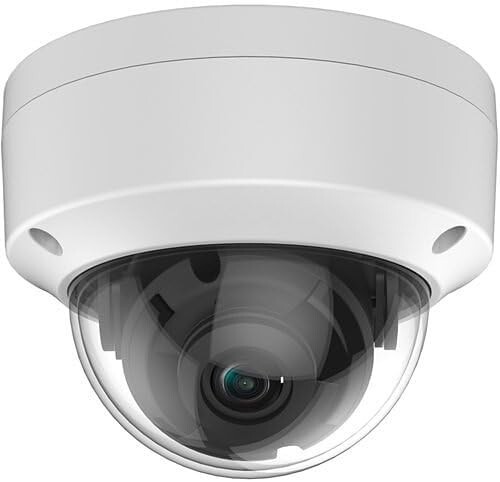

Hikvision OEM 5MP IP Camera Smart Dual Light POE + Audio DS-2CD1343G2-LIUF 2.8mm
$ 27.98
Description
HIK-TD524 > 5MP Smart Hybrid Light Fixed Turret Network Camera > High quality imaging with 8 MP resolution > Support Human and Vehicle Detection > Smart Hybrid Light: advanced technology with long range > Efficient H.265+ compression technology > Support on-board storage up to 512 GB (SD card slot) > Provide real-time security via built-in two-way audio > Water and dust resistant (IP67) Specification Camera Image Sensor 1/3" Progressive Scan CMOS Max. Resolution 5MP Min. Illumination Color: 0.005 Lux - (F1.6, AGC ON),B/W: 0 Lux with IR Shutter Time 1/3 s to 1/100,000 s Day & Night IR cut filter Angle Adjustment Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360° Lens Lens Type Fixed focal lens, 2.8 and 4 mm optional Focal Length & FOV 2.8 mm, horizontal FOV 98°, vertical FOV 54°, diagonal FOV 114° 4 mm, horizontal FOV 78°, vertical FOV 42°, diagonal FOV 93° Lens Mount M12 Iris Type Fixed Aperture F1.6 DORI DORI 2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m 4 mm, D: 78 m, O: 31 m, R: 15 m, I: 7 m Illuminator Supplement Light Type IR,White Light Supplement Light Range Up to 30 m Smart Supplement Light Yes IR Wavelength 850 nm Video Main Stream 50 Hz: 20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 24 fps (1920 × 1080, 1280 × 720) Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360) Video Compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG Video Bit Rate 32 Kbps to 8 Mbps H.264 Type Baseline Profile,Main Profile,High Profile H.265 Type Main Profile Bit Rate Control CBR,VBR Region Of Interest (ROI) 1 fixed region for main stream Audio Audio Type Mono sound Environment Noise Filtering Yes Audio Sampling Rate 8 kHz/16 kHz Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC Audio Bit Rate 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) Network Security Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) Simultaneous Live View Up to 6 channels API Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP User/Host Up to 32 users 3 user levels: administrator, operator, and user Client iVMS-4200,Hik-Connect Web Browser Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+ Image Wide Dynamic Range (WDR) 120 dB SNR ≥ 52 dB Day/Night Switch Day,Night,Auto,Schedule Image Enhancement BLC,HLC,3D DNR Image Settings Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser Privacy Mask 4 programmable polygon privacy masks Interface Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port On-Board Storage -F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB Built-In Microphone Yes Reset Key -F: Yes Event Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception Linkage Upload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture General Power 12 VDC ± 25%, 0.4 A, max. 5 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 6.5 W Material Metal & Plastic Dimension Ø110 mm × 89.2 mm (Ø4.3" × 3.5") Package Dimension 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6") Weight Approx. 340 g (0.7 lb.) With Package Weight Approx. 560 g (1.2 lb.) Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Startup And Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Language English, Ukrainian General Function Heartbeat,anti-banding,mirror,password protection,password reset via email Approval EMC FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7 Safety UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005 Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 Protection IP67: IEC 60529-2013
